Content from Setting up our Project

---

Last updated on 2026-03-02 | Edit this page

Overview

Questions

• Where do we put our project files?

Objectives

• Create a GitLab Repository for our project

Creating a new GitLab Repository

---

Log in to GitLab and create a new repository for your project. Give it a name that reflects the project - something like “LaTeX CICD Workshop”. You can accept all of the default settings.

What is CI/CD?

---

CI/CD stans for “Continuous Integration/Continuous Deployment”. It is intended as a way to automate the process of building and deploying software. However the ability of CI/CD to run code and deploy output files makes is a powerful tool for many different kinds of automation projects. In this workshop, we are going to create a CI/CD pipeline that will build a LaTeX document from a source file and deploy the output PDF to a static URL.

Callout

If you are familiar to GitHub, you might have head of “GitHub Actions”. GitHub Actions is a CI/CD tool built into GitHub which serves a very similar function to GitLab’s CI/CD. Actions uses a different syntax and has a different set of features than GitLab CI/CD. You could potentially use GitHub to accomplish the same thing we are doing in this workshop, but we will not be covering that here.

How does CI/CD work?

There are two things abou GitLab CI/CD that are important to understand before we get started:

• We will define in our project the commands we want to run in our pipeline
• GitLab will run those commands in a “runner” which is a virtual machine that is assigned to our project.

Caution

Check that you have a runner assigned to your project before we get started. You can do this by going to your project, clicking on “Settings” and then “CI/CD”. Scroll down to the “Runners” section and look at the “Available Runners”. There are four tabs here:

• Assigned Project Runners
• Other Available Project Runners
• Group
• Instance

Depending on your GitLab instance, you may have access to runners in any of these categories. If you do not have access to any runners, you will not be able to complete the exercises in this workshop.

The .gitlab-ci.yml file

---

In GitLab, there is a particular file that we use to define the commands that will run in our pipeline. This file is called .gitlab-ci.yml and it must be located in the root directory of our project. The syntax of this file is a little bit tricky, but we will go through it step by step.

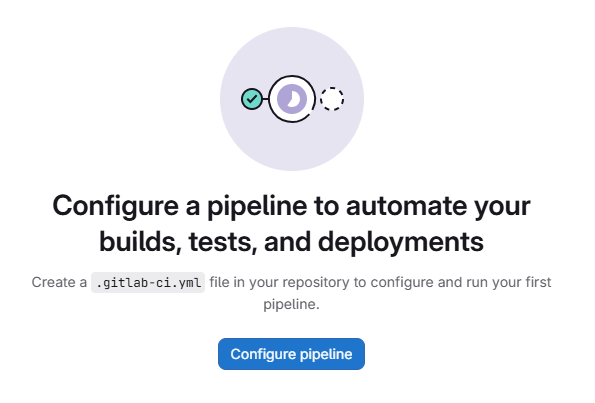

To start, in your project’s sidebar, go to the “Build” section and select “Pipeline Editor”. As long as you haven’t already writting a .gitlab-ci.yml file, you should see something that looks like this:

Click on the “Configure Pipeline” button. GitLab will generate a sample .gitlab-ci.yml file for that demonstrates a few things about the file syntax. We will go over the syntax in more detail in the next episode. For now, click “Commit Changes” to save the file to your project.

Show details

In case the “Configure Pipeline” button does not work for you, you can also create a new file in the root directory of your project called .gitlab-ci.yml and copy and paste the following content into it:

YAML

stages:          # List of stages for jobs, and their order of execution
  - build
  - test
  - deploy

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  script:
    - echo "Compiling the code..."
    - echo "Compile complete."

unit-test-job:   # This job runs in the test stage.
  stage: test    # It only starts when the job in the build stage completes successfully.
  script:
    - echo "Running unit tests... This will take about 60 seconds."
    - sleep 60
    - echo "Code coverage is 90%"

lint-test-job:   # This job also runs in the test stage.
  stage: test    # It can run at the same time as unit-test-job (in parallel).
  script:
    - echo "Linting code... This will take about 10 seconds."
    - sleep 10
    - echo "No lint issues found."

deploy-job:      # This job runs in the deploy stage.
  stage: deploy  # It only runs when *both* jobs in the test stage complete successfully.
  environment: production
  script:
    - echo "Deploying application..."
    - echo "Application successfully deployed."

A Running Pipeline

---

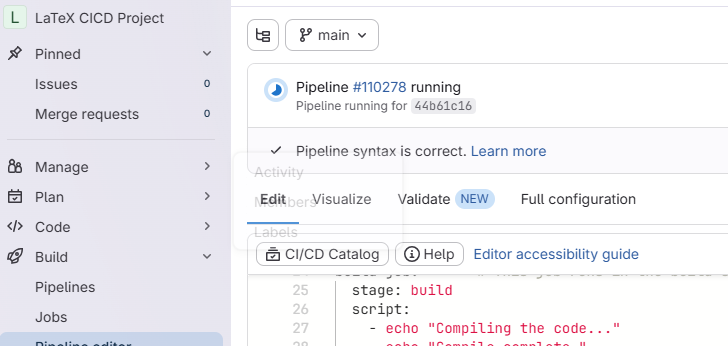

As soon as you commit the .gitlab-ci.yml file, GitLab will automatically start running the pipeline. You can see the status of the pipeline at the top of the page:

We can view the details of the pipeline by clicking on either the small Circle icon, on on the “Pipeline #____” link, or by navigating to the “Build” > “Pipelines” page in the sidebar.

Our demo pipeline should take about a minute to finish running. When it is done, you should see a green checkmark next to the pipeline. Let’s click on the pipeline to view the details.

Pipeline Details

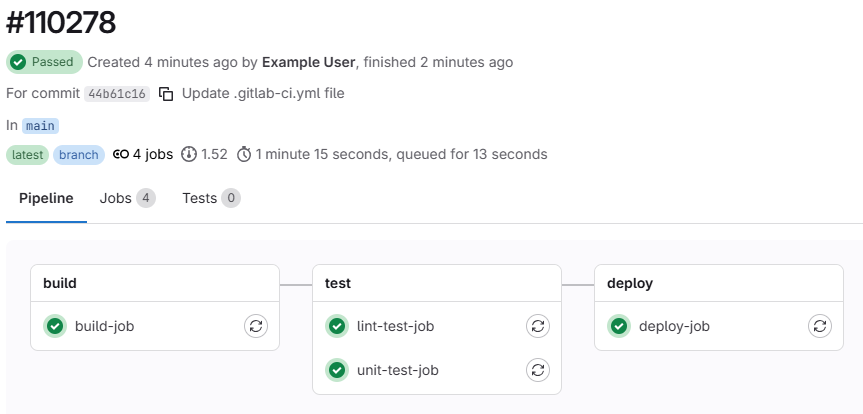

Looking at the pipeline details we see a graphical representation of the pipeline, along with some metadata about this run of the pipeline:

At the top of the page, we can see the overall pipeline status, when the pipeline started and finished, the thing that triggered the pipeline (in this case, our commit of the .gitlab-ci.yml file), the branch the pipeline ran on, and how long the pipeline took to run.

We can alsosee that our pipeline is made up of several groups, called “stages”. Each stage contains one or more “jobs”. Each job is a set of commands that will be run in a single runner. Stages are run sequentially, but jobs within a stage are run in parallel. In our demo pipeline, we have three stages: “build”, “test”, and “deploy”. The “test” stage has two jobs: “lint-test-job” and “unit-test-job”. The “build” and “deploy” stages each have one job: “build-job” and “deploy-job”, respectively.

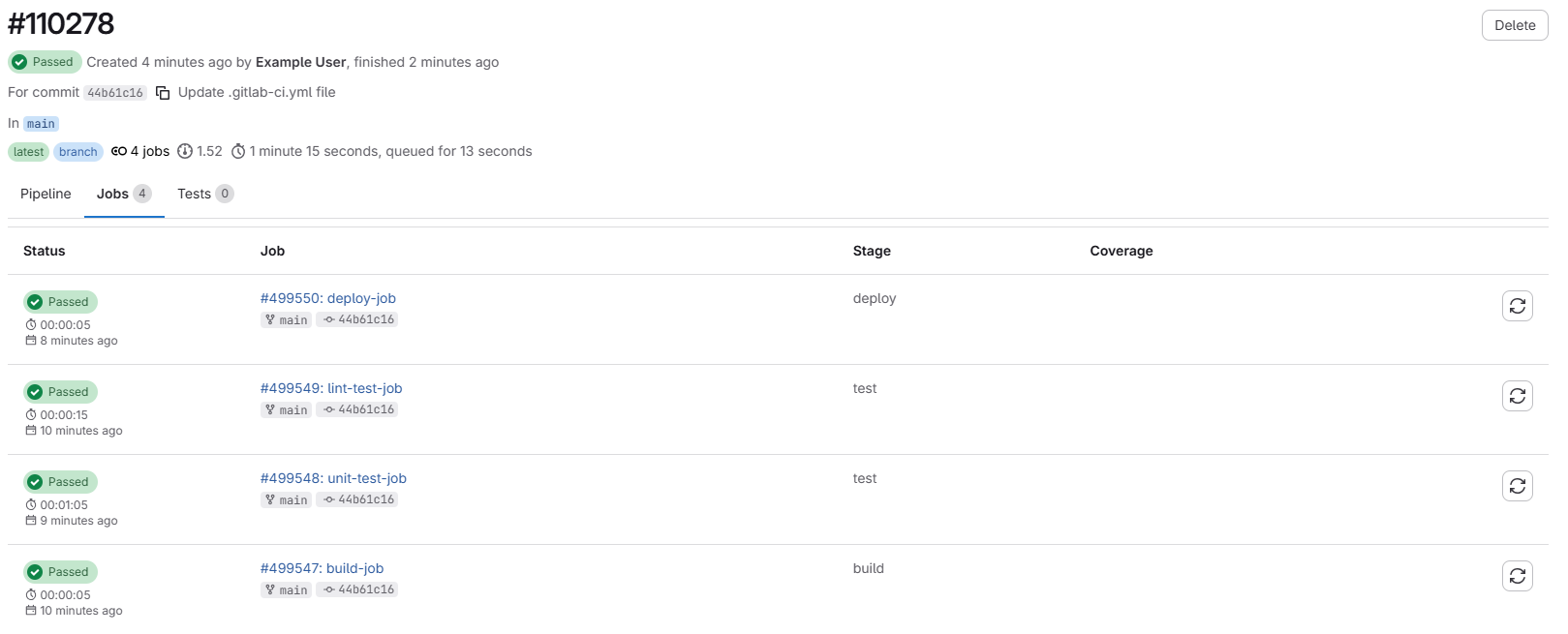

We can also click on the “Jobs” tab to see a breakdown of all of the jobs that ran in this pipeline:

Job Details

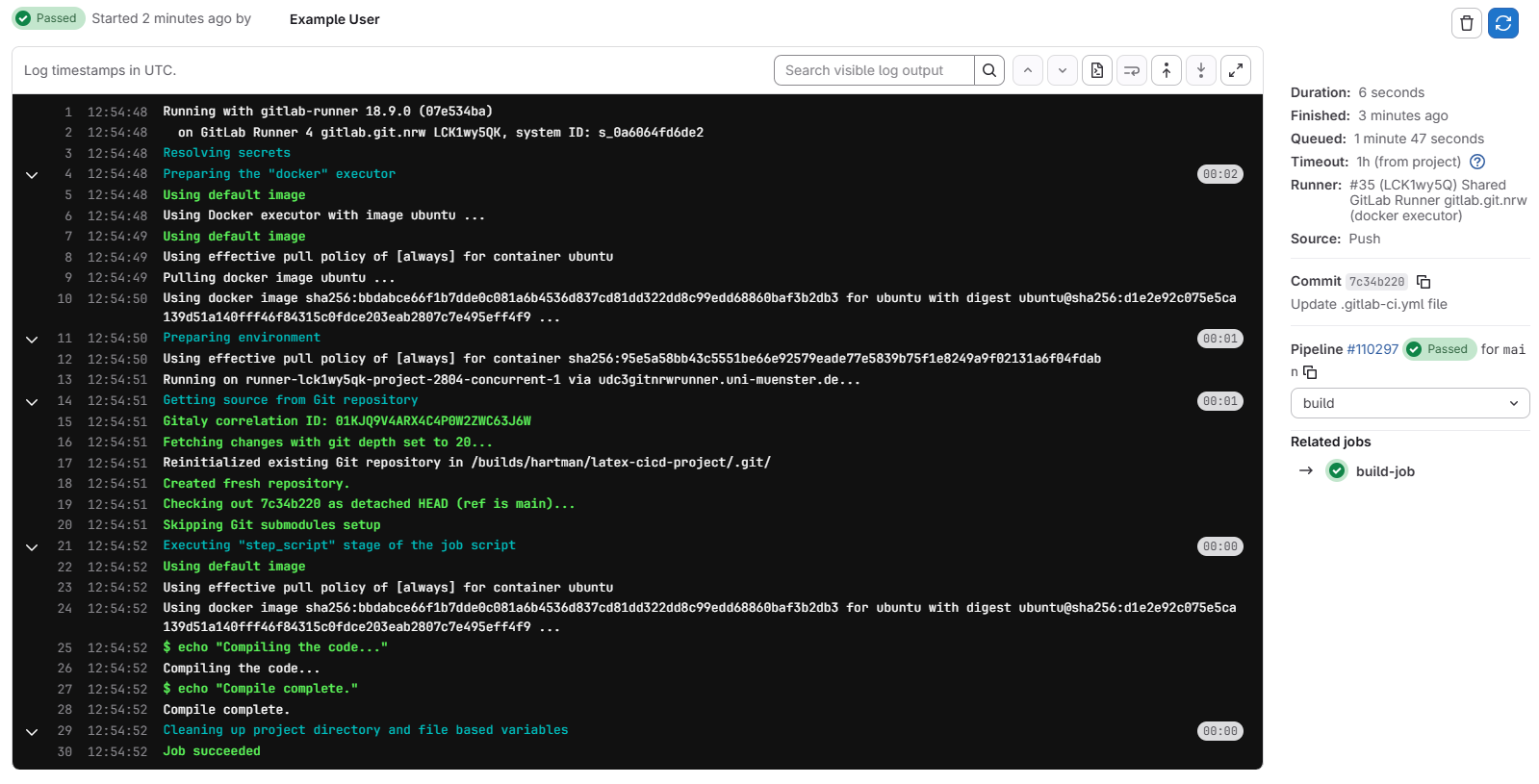

Clicking on any of the jobs will take us to a page with more details about that job, including the commands that were run and the output of those commands:

Key Points

• GitLab CI/CD is a powerful tool for automating all kinds of tasks, not just software development.
• The .gitlab-ci.yml file is where we define the commands that will run in our pipeline.
• Pipelines are made up of stages and jobs. Stages run sequentially, but jobs within a stage run in parallel.

Content from Understanding the CI/CD File

---

Last updated on 2026-03-02 | Edit this page

Overview

Questions

• What is happening in the .gitlab-ci.yml file?
• How can we edit the .gitlab-ci.yml file to add a new job to our pipeline?
• How can we edit the .gitlab-ci.yml file to add a new stage to our pipeline?

Objectives

• Understand the structure and syntax of the .gitlab-ci.yml file
• Edit the .gitlab-ci.yml file to add a new job to our pipeline
• Edit the .gitlab-ci.yml file to add a new stage to our pipeline

The .gitlab-ci.yml file

---

The .gitlab-ci.yml file is written in YAML, which is a human-readable markup language. It is used to define the commands that will be run in our CI/CD pipeline. Although intention of the syntax for this file is to be as simple as possible, it does need to conform to a specific structure in order for GitLab to be able to read it and run our pipeline.

Callout

YAML stands for “YAML Ain’t Markup Language”. It is a data serialization language that is often used for configuration files. It is designed to be easy to read and write for humans, and it is also easy to parse for computers.

YAML syntax basics

YAML files are made up of key-value pairs. The key is a string that identifies the value, and the value can be a string, a number, a boolean, a list, or a dictionary. Key-value pairs are separated by a colon and a space. For example:

YAML

key: value

YAML files can also contain lists, which are denoted by a dash and a space. For example:

YAML

list:
  - item 1
  - item 2
  - item 3

YAML files can also contain dictionaries, which are denoted by a key followed by a colon and a space, and then the value is indented on the next line. For example:

YAML

dictionary:
  key1: value1
  key2: value2
  key3: value3

Anatomy of a .gitlab-ci.yml file

The first section in our file looks like this:

YAML

stages:          # List of stages for jobs, and their order of execution
  - build
  - test
  - deploy

This is defining the stages of our pipeline and the order in which they will be run.

Next, we have the definition of our first job:

YAML

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  script:
    - echo "Compiling the code..."
    - echo "Compile complete."

The job name is the key (build-job) and the value is a dictionary that contains the details of the job. The keys of a job are specific to GitLab - a list of available job keywords can be found in the GitLab documentation - Job Keywords.

In our case, we have two keys - stage tells us which stage this job belongs to, and script is a list of commands that will be run when the job is executed.

Note that the next three jobs are largely the same:

YAML

unit-test-job:   # This job runs in the test stage.
  stage: test    # It only starts when the job in the build stage completes successfully.
  script:
    - echo "Running unit tests... This will take about 60 seconds."
    - sleep 60
    - echo "Code coverage is 90%"

lint-test-job:   # This job also runs in the test stage.
  stage: test    # It can run at the same time as unit-test-job (in parallel).
  script:
    - echo "Linting code... This will take about 10 seconds."
    - sleep 10
    - echo "No lint issues found."

deploy-job:      # This job runs in the deploy stage.
  stage: deploy  # It only runs when *both* jobs in the test stage complete successfully.
  environment: production
  script:
    - echo "Deploying application..."
    - echo "Application successfully deployed."

We can define as many jobs as we like for each stage, but each job must have a unique name and must belong to a stage that is defined in the stages section of the file. We cannot have a stage for which there are no jobs. We also cannot have a job that belongs to a stage that is not defined in the stages section.

Challenge

Challenge 1: Add a new Job to the Pipeline

Use the pipeline editor to add a new job to the test stage of our pipeline. This job should be called my-test-job and it should run the following commands:

BASH

echo "Running my test job... This will take about 30 seconds."
sleep 30
echo "My test job is complete."

Show me the solution

YAML

my-test-job:
  stage: test
  script:
    - echo "Running my test job... This will take about 30 seconds."
    - sleep 30
    - echo "My test job is complete."

Challenge

Challenge 2: Add another Job to the Pipeline

Use the pipeline editor to add the following job to the test stage of our pipeline:

YAML

validate-test-job:
  stage: validate
  script:
    - echo "Running my validate test job... This will take about 20 seconds."
    - sleep 20
    - echo "My validate test job is complete."

What else do we need to add to our .gitlab-ci.yml file in order for this job to run successfully?

Show me the solution

We must add the validate stage to our stages section at the top of the file:

YAML

stages:
  - build
  - test
  - validate
  - deploy

Challenge

Challenge 3a: Add commands to a job

Add some additional commands to the script section of the build-job job. Start with ls -a to list all files in the current directory. Then add a command to print out the commit SHA of the current commit using the CI_COMMIT_SHA environment variable.

Try replacing the CI_COMMIT_SHA with something else from the list of GitLab CI/CD Predefined Variables and see what happens.

YAML

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  script:
    - echo "Compiling the code..."
    - echo "Compile complete."
    - ls -a
    - echo "The commit SHA is ${CI_COMMIT_SHA}."

Show me the solution

ls -a will print out all files in the current directory, including hidden files. Your output might look something like this:

OUTPUT

$ ls -a
.
..
.git
.gitlab-ci.yml
README.md

Note that also present in the output is the README.md file - when we run a CI/CD job, the runner will automatically clone our repository and run the commands in the context of that repository!

Depending on the variables you picked, you might find that some of them print values, and others are empty. Some variables are only available in certain contexts, e.g. CI_COMMIT_SHA is only available when the pipeline is triggered by a commit. We will see later how to add our own variables.

Challenge

Challenge 3b: Add commands to a job

Try adding a command for a common command line utility:

• git --version to get the version of git that is installed in the runner

YAML

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  script:
    - echo "Compiling the code..."
    - echo "Compile complete."
    - ls -a
    - echo "The commit SHA is ${CI_COMMIT_SHA}."
    - git --version

What happens? Why?

Show me the solution

The pipeline will fail with an error message that looks something like this:

OUTPUT

$ git --version
/usr/bin/bash: line 171: git: command not found

This is because the runner that is executing our pipeline is using a Docker image that does not have git installed. We will see in the next episode how to change the Docker image that our runner uses.

Key Points

• Use .md files for episodes when you want static content
• Use .Rmd files for episodes when you need to generate output
• Run sandpaper::check_lesson() to identify any issues with your lesson
• Run sandpaper::build_lesson() to preview your lesson locally

Content from Using CI/CD to Build and Deploy a LaTeX Document

---

Last updated on 2026-03-04 | Edit this page

Overview

Questions

• How can we use CI/CD to automate the process of building and deploying a LaTeX document?
• What are the benefits of using CI/CD for this kind of task?
• How can we run LaTeX commands in our CI/CD pipeline?

Objectives

• Create a CI/CD pipeline that builds a LaTeX document from a source file and deploys the output PDF to a static URL.

Opening up CI/CD: Docker Images

---

In the previous episode we created a CI/CD pipeline that ran a few stages and a few jobs, but those jobs didn’t actually do anything, they just printed out text to the console. You may have tinkered around with the jobs a bit and found that there were some commands that worked in the pipeline, like echo and ls, but when you tried to run a command like git --version the job fails with an error telling us that the command is not found.

This is because each job in the CI/CD pipeline runs in a Docker container, and that container only contains a limited set of software. The upside of this is that there are a huge variety of Docker images available that contain different software, and we just have to tell our jobs which image we want to use.

Callout

Docker images are like pre-built, software only operating systems. You can think of it like a small virtual machine that comes pre-built with a specific set of software. When you run a job in CI/CD, it starts up this virtual machine, runs the commands in the job, and then shuts down.

Selecting a different Docker Image

---

The default Docker image that CI/CD uses is ubuntu:latest, which is a very basic image that only contains the Ubuntu operating system and a few basic utilities. If we want to run commands that aren’t found in that image, we can select a different image that does.

In the last exercise in the previous episode, we added a job that tried to run git --version, but it failed because the git command wasn’t found. We can tell CI/CD that, for this job, we want to use a different docker image:

YAML

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  image:
    name: alpine/git:latest # Use a simple git container using alpine linux
    entrypoint: [""] # Override the default entrypoint to allow us to run arbitrary commands
  script:
    - echo "Compiling the code..."
    - echo "Compile complete."
    - ls -a
    - echo "The commit SHA is ${CI_COMMIT_SHA}."
    - git --version

Callout

The image is called “alpine/git:latest”. The first part, “alpine/git”, is the name of the image and the second part, “latest”, is the tag, which specifies the version of the image to use. If we use the “latest” tag, it will always pull the most recent version of the image from Docker Hub. If we use a specific tag, e.g. “alpine/git:2.52.0”, it will pull that specific version of the image.

Pulling a specific version of the image is called “pinning”, and is generally recommended for CI/CD pipelines, because it ensures that your pipeline will always run with the same version of the software, even if a new version is released that might have breaking changes.

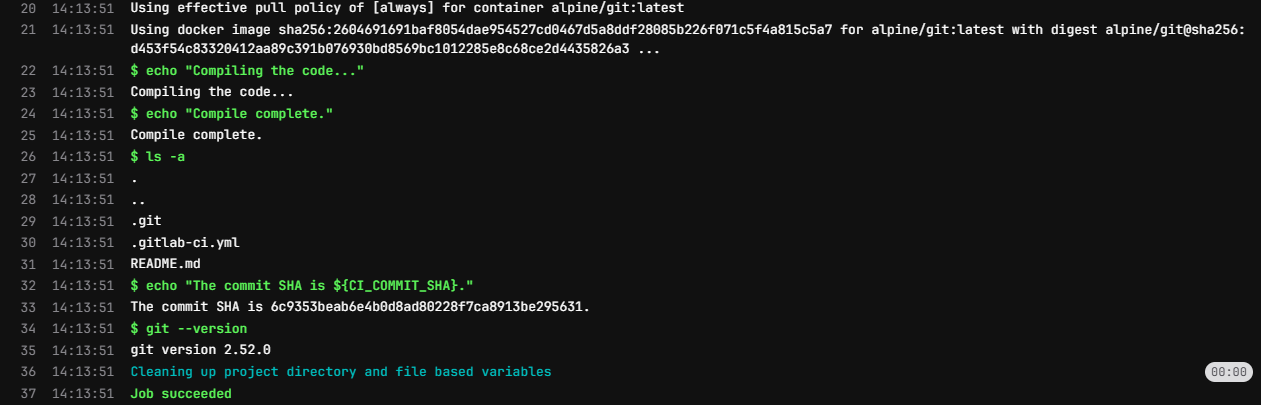

When we check the job details for this pipeline, we can see that the job is now running a different Docker image, and the git --version command works successfully:

Callout

The CI/CD pipeline uses Docker Hub to pull images from, so we can use the Docker Hub website to search for images that contain the software we want to use. We can also create our own Docker images if we need to, but there are a lot of pre-built images already available.

Building a Basic LaTeX Document

---

To start with, we need to have a LaTeX document to build. Let’s create a simple LaTeX document called main.tex in the root of our repository with the following content:

LATEX

\documentclass{article}

\begin{document}
Hello \LaTeX!
\end{document}

We want to use CI/CD to automatically build this LaTeX document into a PDF file, so we’ll need to use a docker image that contains LaTeX. Searching for “latex” on Docker Hub gives us a few options, and for this workshop we’ll use the texlive/texlive image, which contains the TeX Live distribution of LaTeX.

We’ll update our CI/CD pipeline to use this image, and to run the command to build our LaTeX document:

YAML

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  image:
    name: texlive/texlive:latest # Use a TeX Live image that contains LaTeX
  script:
    - echo "Generating PDF from LaTeX source..."
    - lualatex main.tex
    - echo "PDF generation complete."
    - ls -a

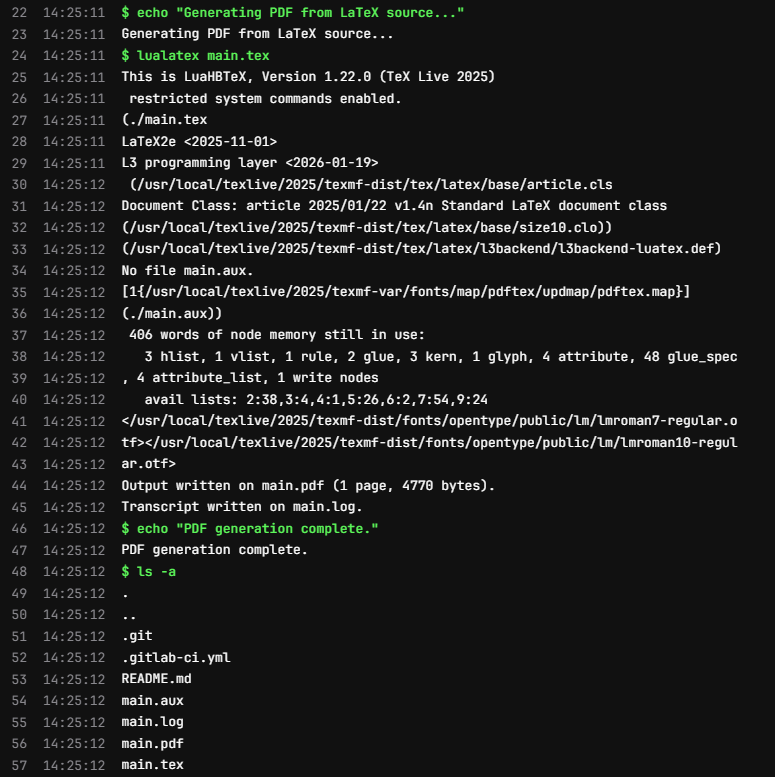

The pipeline will run automatically after each of these commits. Checking the job details for the build job of the latest pipeline, we can see that the lualatex main.tex command runs successfully and generates not only the main.pdf file, but also a few auxiliary files that LaTeX generates during the build process:

Artifacts

Ok, so the command to build the LaTeX document ran successfully, but how do we get the generated PDF file somewhere we can look at it?

We can use the “artifacts” feature of CI/CD to specify that we want to save the generated PDF file as an artifact of the job. This means that after the job runs, we can download the generated PDF file from the CI/CD interface. We can specify this in our .gitlab-ci.yml file like this:

YAML

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  image:
    name: texlive/texlive:latest # Use a TeX Live image that contains LaTeX
  script:
    - echo "Generating PDF from LaTeX source..."
    - lualatex main.tex
    - echo "PDF generation complete."
    - ls -a
  artifacts:
    paths:
      - main.pdf

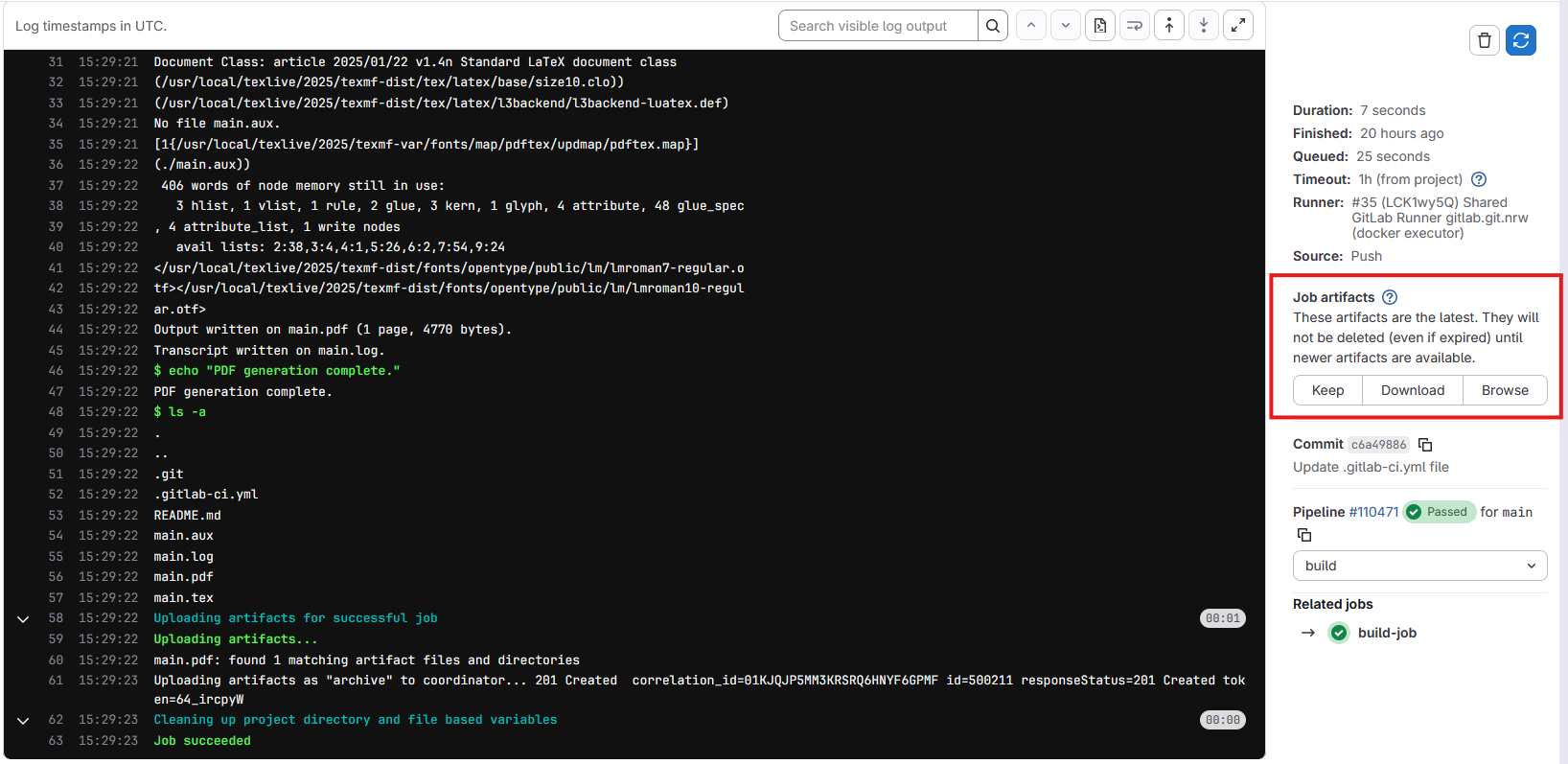

This tells CI/CD that we specifically want to save the main.pdf file as an artifact of this job. After this job runs, you should be able to see a new section in the job details page called “Job artifacts”:

Clicking on the “Browse” button will show us a list of files that the job saved as artifacts. Since we specifically told it in the .gitlab-ci.yml file to only save the main.pdf file, that’s the only file that will be listed here. Clicking on the file will let us preview it in the browser, or download it to our computer.

Callout

We can preview this file because it GitLab has a built-in PDF viewer. If we were to save a different type of file as an artifact, we might not be able to preview, but would only be able to download it.

Pages

While it’s nice that we can download the generated PDF file, it would be even nicer if we could send a url to someone so that they could view our pdf without having to log into GitLab and view a specific job. We can do this with the “pages” feature of GitLab CI/CD, which allows us to deploy static files to a public URL.

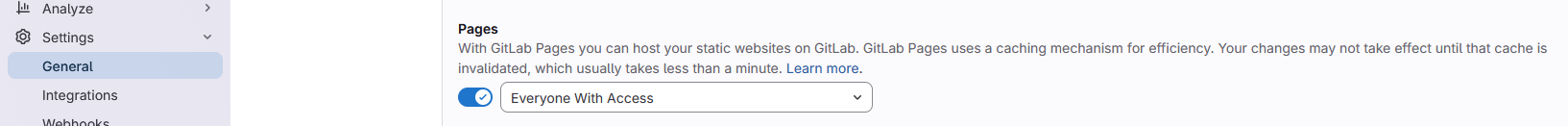

We need to update a couple of settings to make this easier for us. First, we need to tell GitLab that the Pages feature is for everyone, not just the project owner. Navigate to the Settings > General page in the sidebar, and scroll down to the “Visibility, project features, permissions” section. Under the “Pages” feature, make sure the toggle is turned on and that “Everyone with access” is selected:

Next, let’s update our .gitlab-ci.yml file to deploy the generated PDF file to GitLab Pages. GitLab CI/CD has a special job for deploying to Pages, which is called pages. We can add this job to our pipeline like this:

YAML

pages:
  stage: deploy
  script:
    - echo "Deploying to GitLab Pages..."
    - mkdir -p public # Create the public directory if it doesn't exist
    - mv main.pdf public/ # Move the generated PDF file to the public directory
  artifacts:
    paths:
      - public # Save the public directory as an artifact so that it can be deployed to Pages

Much of this we’ve seen before, but there are a couple of things to take note of here.

1. The job must be called pages in order for GitLab to recognize it as a Pages deployment job (the stage name can be anything, but the job name must be pages).
2. We need to move the generated PDF file to a directory called public, as this is the directory that GitLab Pages expects to serve files from. (We also need to ensure that this directory exists, which is why we have the mkdir -p public command).
3. Finally, we need to save the public directory as an artifact of this job.

After we commit this change, the pipeline will run. You might notice however that there’s a job in our pipeline that we didn’t write called “pages:deploy”. This is a special job that GitLab automatically creates as a result of having a job called pages in our pipeline. This job is responsible for taking the artifacts from the pages job and deploying them to GitLab Pages.

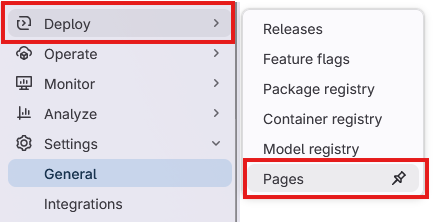

Next we want to view our page. In the sidebar, navigate to “Deploy” > “Pages”:

This page gives us an overview of our pages deployment click on the “Visit website” button and…

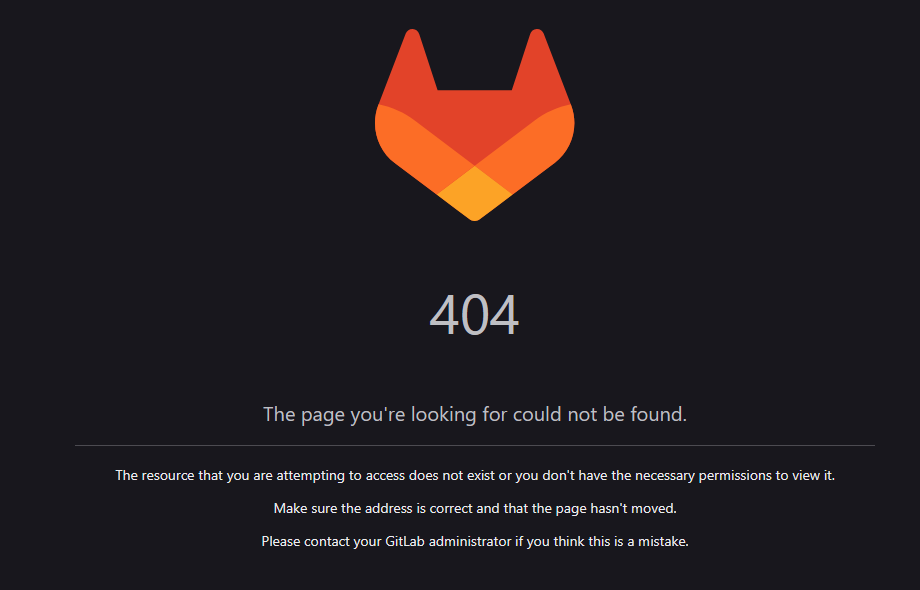

What’s going on here? Why are we getting a 404 error when we try to visit our page? GitLab Pages is serving the public folder - if we had a file in this directory called “index.html”, then this would be used as the homepage of our site. However, since the only file in our public directory is main.pdf, we have to specify this in the url. Add main.pdf to the end of the url and try visiting it again.

Callout

Depending on your GitLab deployment, the url for your pages site might have some extra letters and numbers in it. This is one way of ensuring that the url is unique for each pipeline run, but ideally we want just one url. In the Deploy > Pages settings page, there is a tab called “Domains & settings”. In this tab there is a checkbox called “Use unique domain”. If you uncheck this box, your pages site will have a fixed url that doesn’t change with each pipeline run.

Challenge

Challenge 1: Update the LaTeX document

Update the main.tex file with some additional text in between the \begin{document} and \end{document} tags, e.g. add a new paragraph with some text. If you know some LaTeX, you can also try adding some additional formatting, e.g. make some text bold or italic, or add a section heading.

Commit the changes to the file and let the pipeline run. Refresh the page for your GitLab Pages site after the pipeline is finished running. Did the changes you made to the LaTeX document show up on the page?

Show me the solution

You may have to wait a minute after the pipeline finishes running for the changes to show up. If you refresh the page after a minute and still don’t see the changes, try forcing a refresh on the page. This will vary depending on your browser:

• Chrome: Ctrl + Shift + R on Windows or Cmd + Shift + R on Mac
• Firefox: Ctrl + F5 on Windows or Cmd + Shift + R on Mac
• Safari: Cmd + Option + R on Mac
• Edge: Ctrl + Shift + R on Windows or Cmd + Shift + R on Mac

Challenge

Challenge 2: Add an additional file to the public directory

We also have in our repository a README.md file. This file is not currently being deployed to our Pages site, but we can easily change that by adding a command to our pages job.

Update the pages job in your .gitlab-ci.yml so that the README.md file is also deployed to the pages site.

Give me a hint

You will need to move the README.md file to the public directory, just like we did with the main.pdf file.

Show me the solution

YAML

pages:
  stage: deploy
  script:
    - echo "Deploying to GitLab Pages..."
    - mkdir -p public # Create the public directory if it doesn't exist
    - mv main.pdf public/ # Move the generated PDF file to the public directory
    - mv README.md public/ # Move the README.md file to the public directory
  artifacts:
    paths:
      - public # Save the public directory as an artifact so that it can be deployed to Pages

Challenge

Challenge 3: Add a landing page to the Pages site

Earlier we found that when we navigated to the url for our Pages site, we got a 404 error because there was no index.html file in the public directory. We can fix this by adding an index.html file when we build our Pages site.

Here is a very simple index.html file that you can use:

HTML

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>My LaTeX Document</title>
</head>
<body>
    <h1>Links</h1>
    <ul>
        <li><a href="main.pdf">View the PDF document</a></li>
        <li><a href="README.md">View the README file</a></li>
    </ul>
</body>
</html>

Show me the solution

Save the above HTML code in a file called index.html in the root of your repository. Then, update the pages job in your .gitlab-ci.yml file to move this index.html file to the public directory, just like we did with the main.pdf and README.md files:

YAML

pages:
  stage: deploy
  script:
    - echo "Deploying to GitLab Pages..."
    - mkdir -p public # Create the public directory if it doesn't exist
    - mv main.pdf public/ # Move the generated PDF file to public
    - mv README.md public/ # Move the README.md file to public
    - mv index.html public/ # Move the index.html file to public
  artifacts:
    paths:
      - public # Save the public directory as an artifact

Key Points

• We can use CI/CD to automate the process of building and deploying a LaTeX document.
• Each job in the CI/CD pipeline runs in a Docker container, and we can specify which Docker image to use for each job.
• We can use the “artifacts” feature of CI/CD to save files generated by a job and make them available for download.
• We can use the “pages” feature of GitLab CI/CD to deploy static files to a public URL.

Content from Pandoc

---

Last updated on 2026-03-10 | Edit this page

Overview

Questions

• What is Pandoc and how does it relate to Markdown and LaTeX?
• How can we use Pandoc to convert Markdown files into PDF files?

Objectives

• Use Pandoc to convert Markdown files into different formats

Pandoc

---

Pandoc is a “universal document converter” run on the command line to convert files from one format to another. It can handle a wide variety of input and output formats, including more simple formats like Markdown and HTML, as well as more complex formats like PDF and Microsoft Word. Depending on the format, pandoc can either convert from, to or both the input and output formats.

For our use case, Pandoc can be used to convert a Markdown file directly into a LaTeX file. This allows us to write our document in Markdown, which is easier to write and read than LaTeX, and then use Pandoc in our CI/CD pipeline to convert it into a PDF file that we can share with others.

Create a document in Markdown

---

We have our LaTeX document from a previous episode, but wouldn’t it be nicer if we could write our document in a simpler format like Markdown and then convert it? Let’s start by re-creating our simple LaTeX document in Markdown. Create a file called my_document.md and add the following content:

MARKDOWN

---
title: "My Document"
author: "Max Mustermann"
date: "2000-01-01"
---

Hello LaTeX!

Next let’s create a job that uses Pandoc to convert this Markdown file into a PDF. We can use the “build” stage again, since this job is independent from our earlier build job that builds our LaTeX document, but note two things:

• We are using a different Docker image that contains some additional packages and templates called pandoc/extra.
• We need to change the job name to something different than build-job since we already have a job with that name.

YAML

build-job-pandoc:       # This job runs in the build stage, which runs first.
  stage: build
  image:
    name: pandoc/latex:latest # Use a TeX Live image that contains LaTeX
    entrypoint: [""] # Override the default entrypoint
  script:
    - echo "Generating PDF from Markdown source..."
    - pandoc my_document.md --output my_document.pdf # Convert with pandoc
    - echo "PDF generation complete."
    - ls -a
  artifacts:
    paths:
      - my_document.pdf

Then let’s also update our pages job to also publish the PDF file that we just generated:

YAML

pages:
  stage: deploy
  script:
    - echo "Deploying to GitLab Pages..."
    - mkdir -p public # Create the public directory if it doesn't exist
    - mv main.pdf public/ # Move the generated PDF file to public
    - mv my_document.pdf public/ # Move the presentation.pdf file to public
    - mv README.md public/ # Move the README.md file to public
    - mv index.html public/ # Move the index.html file to public
  artifacts:
    paths:
      - public # Save the public directory as an artifact

Callout

You can of course, also just move all the files in the current directory to the public directory with the command mv * public/. This would be more concise, but would also move any other files that we might have in the directory, which we might not want to publish.

We could get around this by either setting the output of our pandoc commands to be in either the public directory or a separate directory that we then move to the public directory.

Callout

If you finished Challenge 3 in the previous episode, you can also add the following to your html file to add a link to the presentation:

HTML

<li><a href="my_document.pdf">View Pandoc Document</a></li>

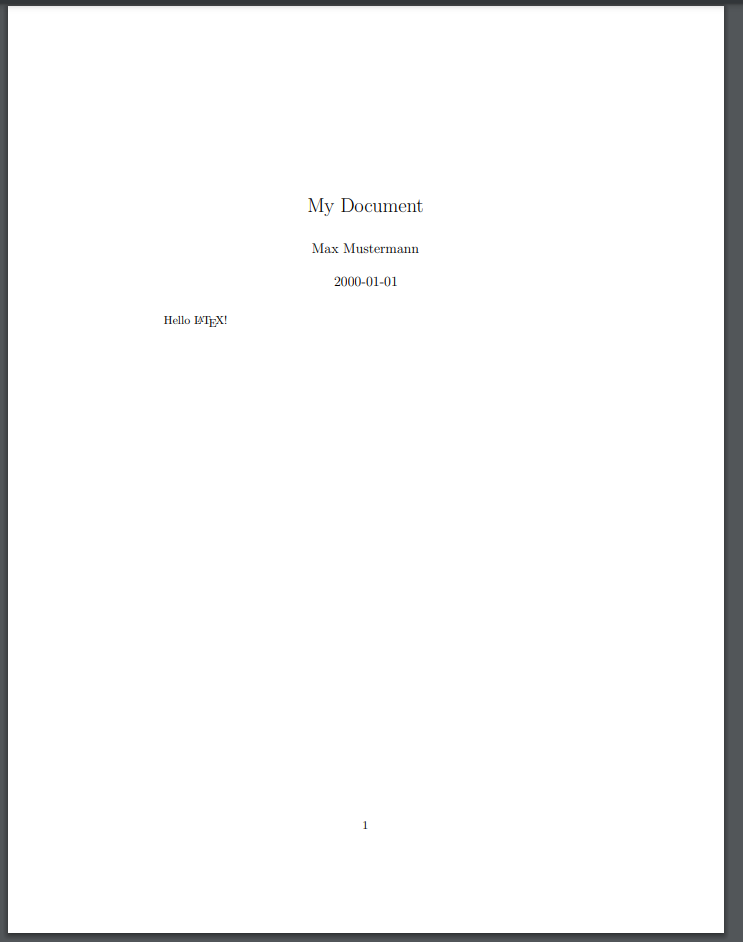

After the pipeline runs, you should be able to access the PDF via the pages url for your project. It should look somehing like this:

Note that Pandoc did a pretty good job converting our Markdown file - the metadata in our YAML front matter has been used to create a title section. We even still got to use the \LaTeX command to get the LaTeX logo. However the overal pdf is somewhat plain looking.

Applying a Template to the Document

---

The PDF file generated by Pandoc from the Markdown source file is a little plain. We can apply a template to the document to alter the output style. Pandoc supports a variety of templates that we can specify using the --template option when we run the pandoc command.

We will also need use a different Docker image that contains some additional packages and templates called pandoc/extra. Let’s update our build-job-pandoc to use this image and to apply the eisvogel template to our document:

YAML

build-job-pandoc:       # This job runs in the build stage, which runs first.
  stage: build
  image:
    name: pandoc/extra:latest # Use the Official Pandoc image
    entrypoint: [""] # Override the default entrypoint
  script:
    - echo "Generating PDF from Markdown source..."
    - pandoc my_document.md --output my_document.pdf --template eisvogel # Convert with pandoc
    - echo "PDF generation complete."
    - ls -a
  artifacts:
    paths:
      - my_document.pdf

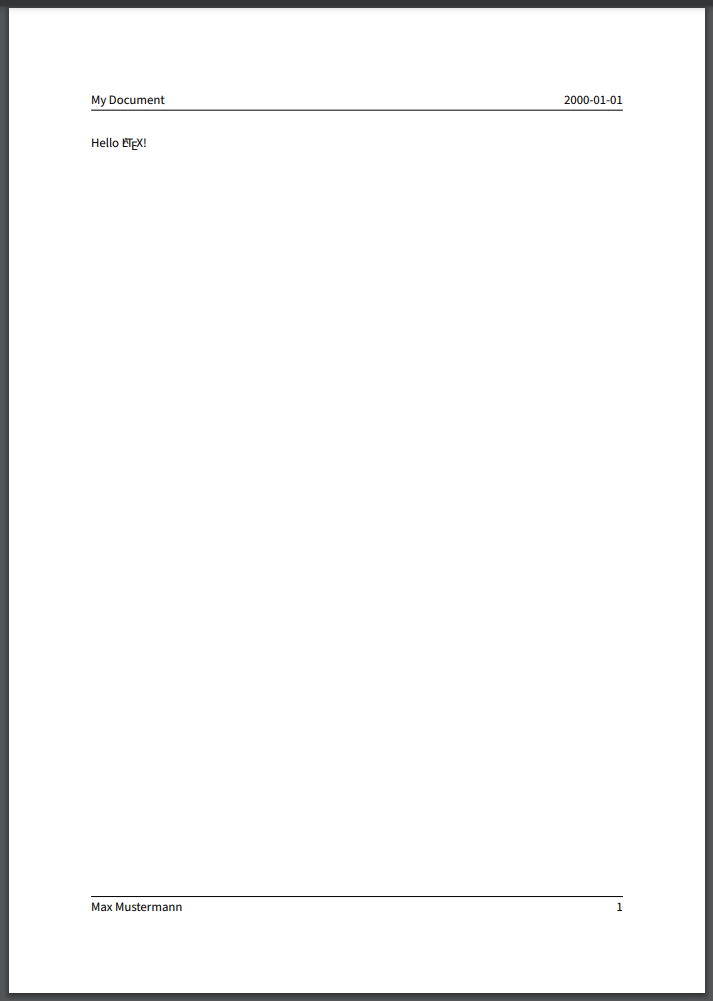

After the pipeline runs, you should be able to access the PDF via the pages url for your project. The output should look something like this:

It’s still a little plain, but the template has modified the general appearance of our metadata, adding a header and footer section, with our content in the middle.

Adding Additional Metadata

At the moment we’ve only defined the title, author and date in our metadata, but EisVogel can parse additional fields to customize the appearance of the final document. Let’s add some more data to our YAML front matter and include some sections in our content

MARKDOWN

---
title: "My Document"
author: "Max Mustermann"
date: "2000-01-01"
titlepage: true
toc: true
toc-own-page: true
---

# Hello LaTeX!

This is the first section of our document.

## This is a subsection of the first section

# This is the second section of our document.

Here's some text in the second section.

Run the pipeline again and see how the output has changed:

Without touching anything other than the contents of the markdown file, we have a nicely formatted PDF document with a title page and a table of contents!

Challenge

Challenge 1: Add some additional content to the Markdown file.

Add some additional content to the my_document.md file, e.g. add a new section with some text. Try adding some additional markdown elements, like links, tables, and code blocks.

(You can reference this Markdown Cheat Sheet for ideas.)

Run the pipeline again and see how the output has changed.

Show me the solution

There’s no real right answer, but here’s an example of what you might have added to your my_document.md file:

MARKDOWN

---
title: "My Document"
author: "Max Mustermann"
date: "2000-01-01"
titlepage: true
toc: true
toc-own-page: true
---

# Hello LaTeX!

This is the first section of our document.

There is a markdown cheat sheet available [here](https://www.markdownguide.org/cheat-sheet/).

## This is a subsection of the first section

Here is an example of a code block:

```python
def greet(name):
    print(f"Hello, {name}!")
```

# This is the second section of our document.

Here's a table:
| Fruit  | Quantity | Price |
|--------|----------|-------|
| Apple  | 10       | 1.50  |
| Banana | 5        | 10.00 |

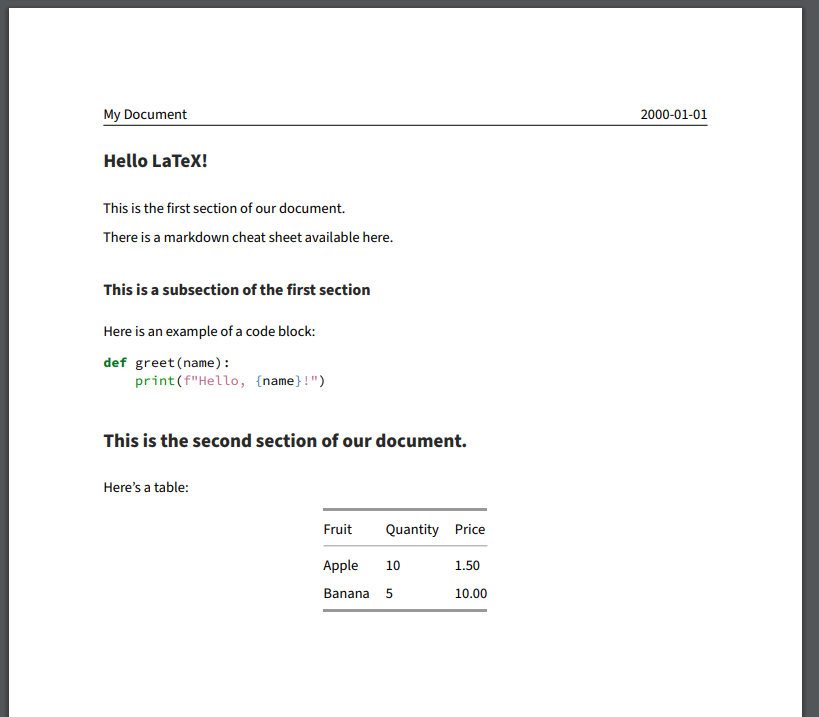

And it might end up looking something like this:

Note the syntax highlighting in the code block and the formatting of the table!

Challenge

Challenge 2: Pandoc Variables

Pandoc supports a variety of variables that can be used to customize the output of the document that we can add to the YAML front matter of our Markdown file. Check out the pandoc documentation and try a few variables to see how they affect the output:

• Pandoc documentation for Metadata Variables.
• Pandoc documentation for LaTeX variables.

Show me the solution

Again, there’s no one right answer, but a couple things to try out:

MARKDOWN

---
title: "My Document"
author: "Max Mustermann"
date: "2000-01-01"
titlepage: true
toc: true
subtitle: "This is a subtitle"
abstract: "This is an abstract of the document."
keywords: ["pandoc", "markdown", "latex"]
hyperrefoptions:
- linktoc=all
colorlinks: true
---

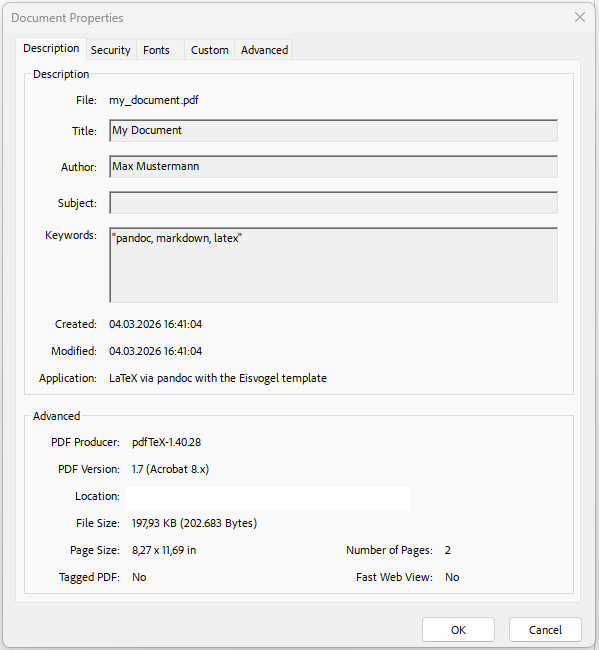

If you tried the “keywords” variable, you might wonder what this actually does, since it doesn’t seem to have any effect on the output. The “keywords” variable is actually used to add metadata to the PDF file that can be read by PDF readers. If you open the PDF file in a PDF reader and look at the document properties, you should see the keywords that you added:

Challenge

Challenge 3: Add another File Output Type

We’ve just done markdown to PDF, but Pandoc can convert to a variety of different formats. Try adding a line to your build-job-pandoc job to also convert the markdown file into a different format, e.g. HTML or Microsoft Word.

Show me the solution

build-job-pandoc: # This job runs in the build stage, which runs first. stage: build image: name: pandoc/extra:latest # Use the Official Pandoc image entrypoint: [“”] # Override the default entrypoint script: - echo “Generating PDF from Markdown source…” - pandoc my_document.md –output my_document.pdf –template eisvogel # Convert with pandoc - pandoc my_document.md –output my_document.html # Convert to HTML with pandoc - pandoc my_document.md –output my_document.docx # Convert to Word with pandoc - echo “PDF generation complete.” - ls -a artifacts: paths: - my_document.pdf

Key Points

• We can use Pandoc to convert Markdown files into different formats, including PDF files.
• We can apply templates to our Pandoc documents to customize the appearance of the output.

Content from Working with Custom Templates

---

Last updated on 2026-03-10 | Edit this page

Overview

Questions

• How can we use the beamer class to create a presentation with Pandoc?
• How can we use custom templates with Pandoc?

Objectives

• Create a presentation in Markdown and render it to PDF using the beamer class.
• Use a custom template to create a presentation in Pandoc.
• Add LaTeX commands to a markdown file to customize the output.

The Beamer Class

---

In the previous episode we used the default document template to create a plain document. This time, we’re going to use the beamer class to create a presentation. The beamer class is a popular LaTeX class for creating slide presentations. Just like we did in the previous episode, we can create a markdown file with some content and then use Pandoc to convert it into a PDF.

Callout

Each Heading in the markdown file will be converted into a new slide in the presentation. The content of each slide will be determined by the content under the corresponding heading in the markdown file.

Let’s start with a simple markdown file that contains some headings and some content under each heading:

MARKDOWN

---
title: "My Presentation"
author: "Max Mustermann"
date: "2000-01-01"
---

# Slide 1
This is the first slide.

# Slide 2
This is the second slide.

- This is a bullet point on the second slide.
- This is another bullet point on the second slide.

As with our last document, we’ll add some metadata in the YAML front matter at the top of the file. This will be used by Pandoc to create a title slide for our presentation.

Finally, we’ll add a line to our CI/CD script to render the document:

YAML

- pandoc presentation.md --output presentation.pdf

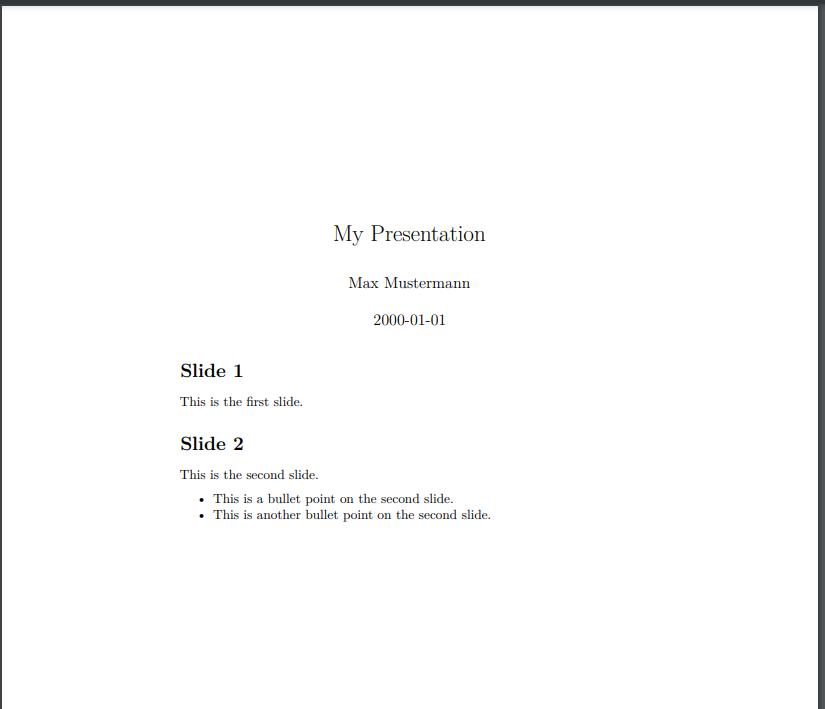

Saving this file to our repository should trigger the pipleine. After running, you should find a PDF file that looks something like this:

Wait, what? Why doesn’t it look like a presentation? We never told Pandoc to use the beamer class, and Pandoc isn’t going to assume anything about the output format if we don’t tell it. We need to update our CI/CD script to specify that we want to use the beamer class. We can do this by adding the -t beamer option to our Pandoc command:

YAML

- pandoc presentation.md --output presentation.pdf -t beamer

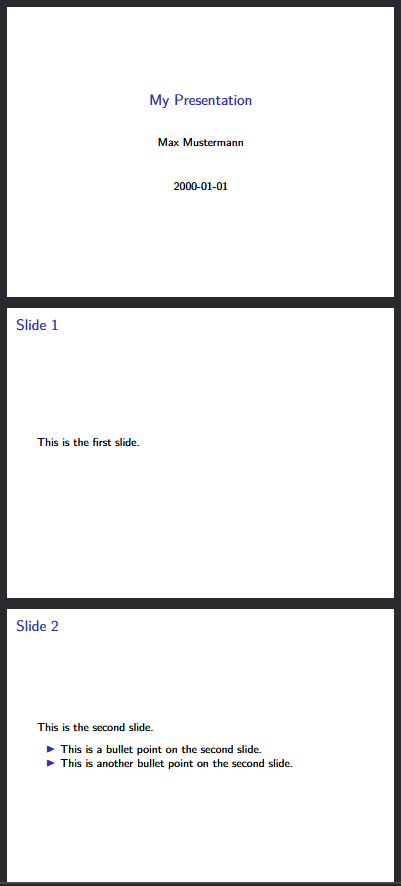

That looks better!:

The RWTH Template

---

In the previous episode, we used the EisVogel template to create a simple PDF document from our Markdown source file. This time, we’re going to use a custom template that has been created for RWTH. This will require a few more steps to set up, as we will have to extend our Docker image slightly.

Installing the RWTH template

The current Pandoc image does not contain the RWTH template and its dependencies, so we will have to add some extra information to our CI/CD script. We can do this in a section called before_script, which is a section that allows us to specify commands that should be run before anything in the scripts section.

YAML

before_script:
    - tlmgr option repository https://ftp.tu-chemnitz.de/pub/tug/historic/systems/texlive/2025/tlnet-final/
    - tlmgr install rwth-ci anyfontsize tex-gyre arimo fontaxes extsizes
    - tlmgr install --reinstall beamer
    - echo '\providecommand{\tightlist}{\setlength{\itemsep}{0pt}\setlength{\parskip}{0pt}}' > header.tex

Callout

An explanation of the commands in this section:

• tlmgr is the TeX Live package manager.
• The first command sets the repository that tlmgr will use to install packages. We need to use a specific repository that contains the RWTH template and its dependencies.
  • This is required at the moment because an update in the TeX Live distribution causes errors when installing the RWTH template and its dependencies. This is a temporary workaround until the issue is resolved.
• The second command installs the RWTH template and its dependencies using tlmgr.
• The third command reinstalls the beamer package.
• The fourth command creates a header.tex file that contains a definition for the \tightlist command. This command is used in the template by pandoc, and is not defined by default.

Finally, we need to update our pandoc command to tell it to use the RWTH template. We can do this by specifically telling pandoc that we want to use the rwth-beamer class.

Callout

We also need to tell pandoc to use the header.tex file that we created in the before_script section. This is done using the --include-in-header option. The template uses the \tightlist command, which is not defined by default, so we have defined it in the header.tex file to avoid errors when rendering the document.

Our final pandoc command should look like this:

YAML

pandoc presentation.md -t beamer --output presentation_rwth.pdf -V documentclass=rwth-beamer --include-in-header=header.tex

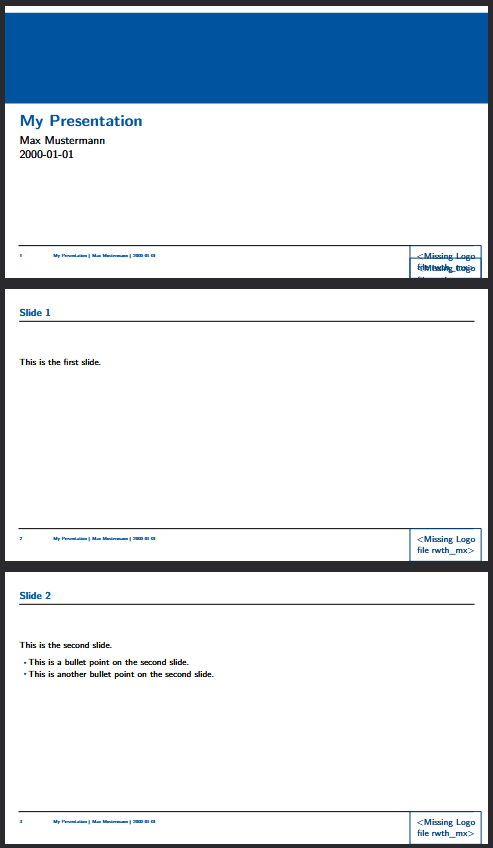

And when we run the pipeline, we should get a PDF file that looks something like this:

The Missing Logo File

Our template is missing one last thing - the logo file. The template prints out a message that says Missing Logo file rwth_mx>. First off, we need a logo file. We can find an example file in the RWTH-LaTeX-Templates repository. For our project, we will download the rwth_mx_cmyk.pdf file and add it to the root of our repository.

If we were writing a LaTeX document, we would add the logo file as one of the parameters to the document class, like this:

LATEX

\documentclass[logofile=img/rwth_mx_rgb]{rwth-beamer}

We can do the same thing with pandoc by adding to the YAML front matter of our markdown file:

YAML

---
title: "My Presentation"
author: "Max Mustermann"
date: "2000-01-01"
classoption:
  - logofile=rwth-mx-cmyk
---

Our slides should now look like this:

Adding LaTeX Commands to the Template

We can do all of the basic formatting and content in our markdown file, but we are of course somewhat limited in what we can do with markdown alone. There are may additional options we can perform by adding LaTeX commands to our markdown file. Try updating your markdown file like this:

MARKDOWN

---
title: "My Presentation"
author: "Max Mustermann"
date: "2000-01-01"
classoption:
  - logofile=rwth-mx-cmyk
---

# Slide 1
This is the first slide.

# Slide 2
This is the second slide.

- This is a bullet point on the second slide.

/pause

- This is another bullet point on the second slide.

After running the pipeline, you should see that the third slide is now split into two slides, with the first bullet point appearing on the second slide, and the second bullet point appearing on a third slide. This is because the /pause command tells the beamer class to pause the slide at that point and wait for the user to click before showing the rest of the content.

Challenge

Challenge 1: Adding an alert to a Slide

At the end of the episode, we added a /pause command to our markdown file to split a slide into two slides. The beamer class also has an \alert command. Try adding the following content to your markdown file:

MARKDOWN

# Slide 3

- \alert<1>{This is a bullet point on the third slide.}
- \alert<2>{This is another bullet point on the third slide.}
- \alert<3>{This is yet another bullet point on the third slide.}

What does this do? What happens if you change the numbers in the alert commands? What happens if you remove the numbers?

Show me the solution

The \alert command is used to highlight specific content on a slide. The numbers in the alert commands specify the order in which the content will be highlighted. If you remove the numbers, all of the content will be highlighted at the same time.

Key Points

• The beamer class is a popular LaTeX class for creating slide presentations.
• We can use custom templates with Pandoc to create more complex documents.
